AV7000
添加時間：2019-11-28 22:17:55
來源：
信息
Datalogic得利捷 AV7000線性相機系統可為包括翻板、托盤和交叉帶在內的多款大型輸送機提供全方位高速包裹智能分揀。憑借其卓越的光學性能，AV7000相機系統成為各種配送中心、包裹設施和倉庫中管理包裝標識的數據陣列基石。
得益于AV7000相機配備的高靈敏度CMOS圖像傳感器及采用Dataloigc得利捷專利照明技術，AV7000相機在物體高速運動狀態下可提供超高清晰度的圖像，從一面到六面。圖像可以被完整定義，或壓縮格式導出。全新AV7000相機是在Datalogic得利捷獲獎的AV6010和NVS9000線性相機基礎上發展革新而來，是當今市場上獨一無二的新一代自動識別解決方案。
AV7000相機擁有在高速輸送機系統上識別箱子、扁平件和塑料袋的條碼卓越性能，保障物料處理的最佳效率。
特點/優勢
? Next generation CMOS sensor with 40 % greater sensitivity
? Single view high quality picture for large conveyors (1400 mm/55inch)
? Patented Autofocus System offering extended DoF
? Patented PLS technology technology, reducing the footprint of thereading
station by 50%
? Patented Digital Zoom technology assuring constant DPI resolution
? Next generation decode algorithm for poor quality codes
? Multiple format image saving from full definition to highlycompressed JPG
? Browser based interface compatible with any kind of OS and HWplatform
including PC and Tablet
? Redundant architecture with no single point of failure
? Software tools for image saving and data intelligence
? Linux operative system
應用
? Parcel sorting
? Dimension Weigh Scan System
? OCR and Videocoding
? Extended ID and image saving

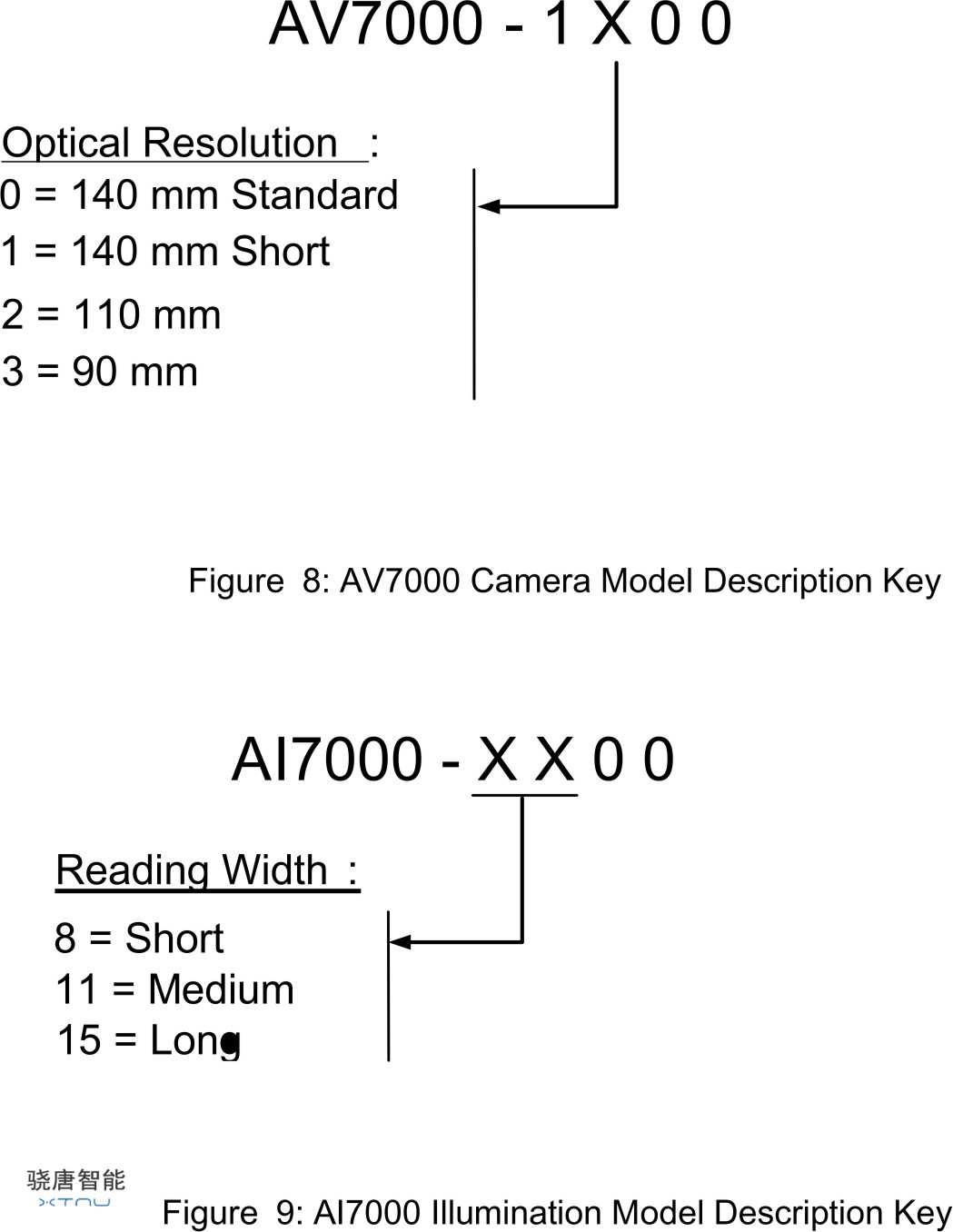

型號描述：
產品序列提供以下型號：
產品訂貨號 | 產品描述 |
AV7000 Reader | |
934001000 | AV7000-1000 140mm f/5.6 STD |
934001010 | AV7000-1100 140mm f/5.6 SHORT RANGE |
934001020 | AV7000-1200 110mm f/8.0 |
934001030 | AV7000-1300 90mm f/8 |
AI7000 Illumination | |
934001100 | AI7000-800 SHORT LIGHTING SYS |
934001110 | AI7000-1100 MEDIUM LIGHTING SYS |
934001120 | AI7000-1500 LONG LIGHTING SYS |
934001200 | AI7000-800W SHORT WHITE LIGHTING SYS |
934001210 | AI7000-1100W MEDIUM WHITE LIGHTING SYS |
934001220 | AI7000-1500W LONG WHITE LIGHTING SYS |
