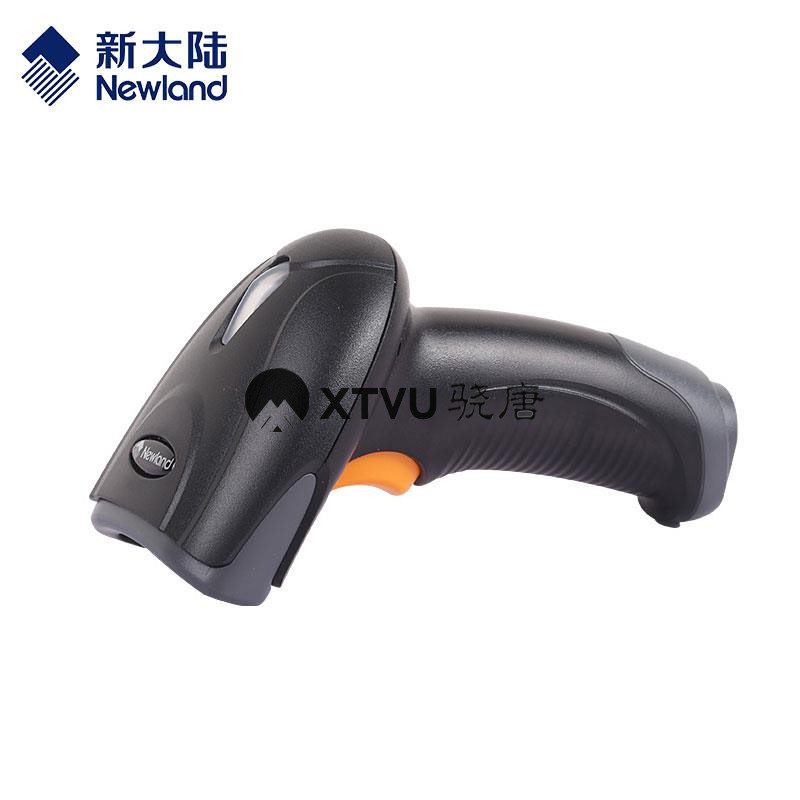

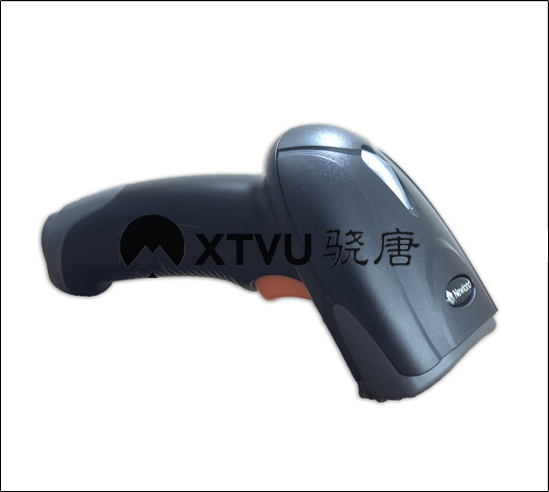

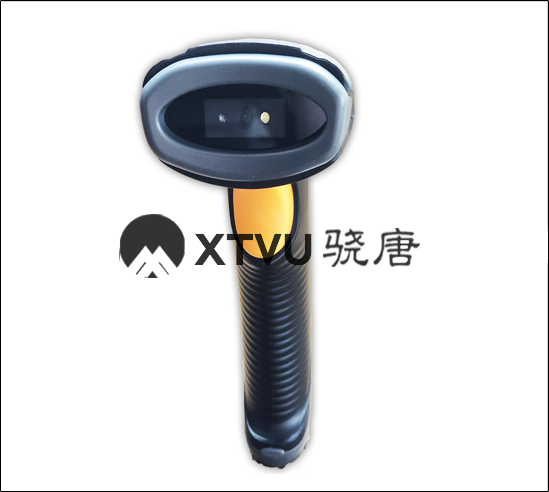

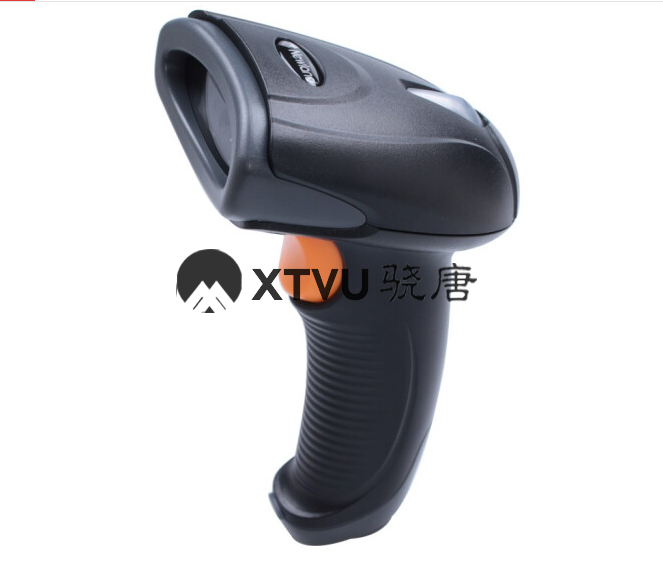

OY20 1D 2D Bar Code Scanner Reader Wireless POS Handle Mobile Automatic Laser Barcode Scanner
添加時間：2023-06-26 19:29:55
來源：
| Type : | Handheld Scanner |
| Symbologies : | 1D/2D |
| Reading Mode : | CMOS |
| Interface : | USB, RS232 |
| Category : | Good Scanning Performance |

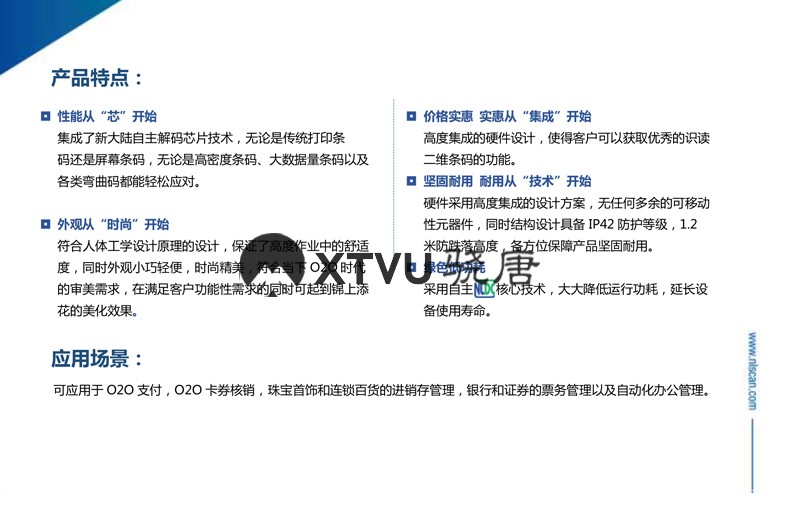

Outstanding Performance
Equipped with a outstanding CPU, this CPU-based scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.
Elegant Appearance
Blending ergonomics and aesthetics in its design, the NLS-OY20 not only ensures operator comfort and productivity for intensive handheld scanning but also meets the aesthetic needs of the O2O era.
Cost-effective Solution
The NLS-OY20 provides a cost-effective data capture solution that allows customers to enjoy the capabilities of 2D barcode scanner for the price of 1D scanner.
Durable Construction
The NLS-OY20, built into an IP42-sealed and drop resistant (1.2m) housing with no moving parts, fortifies itself inside and out.

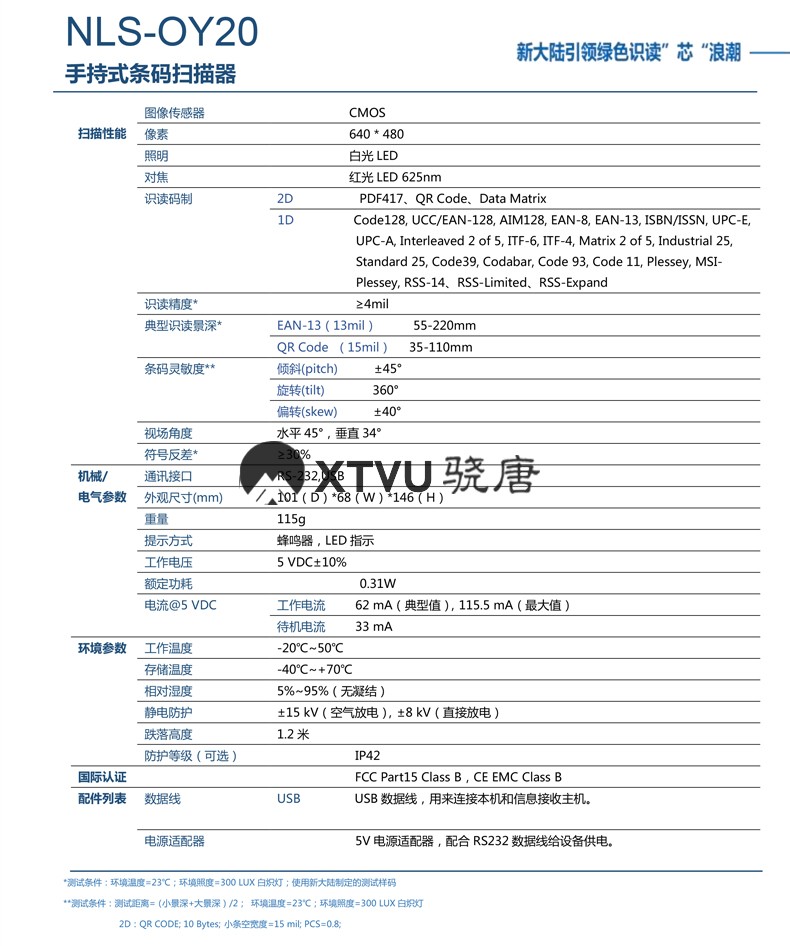

Performance | Image Sensor | 640×480 CMOS |
Illumination Aiming | White LED Red LED (625nm) | |
Symbologies | 2D PDF417, Micro PDF417, Micro QR, QR Code, Data Matrix, Aztec. | |
1D Code 11, Code 128, Code 39, GS1-128 (UCC/EAN 128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 25, ITF6, ITF-14, Standard 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS). | ||
Resolution | ≥3mil (Code 128) | |
Typical Depth of Field | EAN-13 50mm-260mm (13mil) Code 39 50mm-115mm (5mil) PDF 417 50mm-120mm (6.7mil) Data Matrix 35mm-125mm (10mil) QR Code 30mm-170mm (15mil) | |
Scan Angle | Pitch ±55° (QR 15mil) | |
Roll 360° (QR 15mil) | ||
Skew ±55°(QR 15mil) | ||
Field of View | Horizontal 45°, Vertical 34° | |
Min. Symbol Contrast | 20% | |
Physical | Interfaces | RS-232, USB |
Dimensions (L×W×H) | 145×101×68mm | |
Weight | 111g | |
Notification | Beep, LED indicator | |
Operating Voltage | 5VDC±5% | |
Rated Power Consumption | 950mW (typical) | |
Current @ 5VDC | Operating 190mA (typical), 201mA (max.) | |
Idle 35mA | ||
Environmental | Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
Humidity | 5% ~ 95% (non-condensing) | |
±15 KV (air discharge); ±8 KV (direct discharge) | ||
Drop | 1.2m | |
Sealing | IP42 | |
FCC Part15 Class B, CE EMC Class B |
