M系列專業相機
添加時間：2019-02-27 17:30:32
來源：
信息

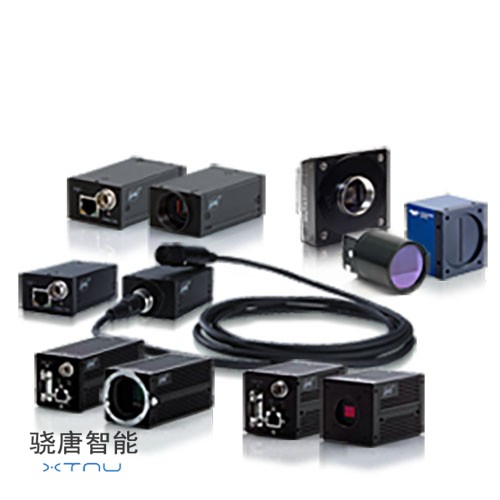

M系列專業相機支持如今復雜的高速、高質量的檢查和測量的視覺要求。這些GigE視覺兼容型代表了行業的最尖端的相機技術,采用IMPACT軟件和特殊的工程技術經驗來為全球的客戶提供支持、服務。MX系列專業相機很容易地集成加上MX系列處理器的嵌入式系統能擴展應用場景。
特點/優勢
? 1K到4K灰階掃描相機
? IP67等級相機
? 3CCD彩色相機
? 紫外線敏感相機
? 遠程頭相機
? 8和16百萬像素相機
應用
? Web檢驗
? 應用在嚴酷的環境下(例如:食品和飲料、制藥)
? 高分辨率彩色和灰階的應用程序
? 應用程序與設備可用于狹窄的空間
產品序列提供以下型號：
產品訂貨號 | 產品描述 |
601-0428 | Camera, Gig-E, 1Kx1K, 100fps, Monochrome, 1/2" |
601-0429 | Camera, Gig-E, 1Kx1K, 100fps, Color, 1/2" |
601-0430 | Camera, Gig-E, 1600x1200, 50fps, Monochrome, 2/3" |
601-0431 | Camera, Gig-E, 1600x1200, 50fps, Color, 2/3" |
601-0432 | Camera, Gig-E, 1920x1080, 50fps, Monochrome, 2/3" |
601-0433 | Camera, Gig-E, 1920x1080, 50fps, Color, 2/3" |
601-0434 | Camera, Gig-E, 2330x1750, 25fps, Monochrome, 1" |
601-0435 | Camera, Gig-E, 2330x1750, 25fps, Color, 1" |
601-0425 | Camera, Gig-E, 3CCD Color, 1620 x 1236, 1/1.8" CCD, 15FPS |
601-0449 | Camera, Gig-E, 3CCD Color, 1392 x 1040, 1/2" CCD, 20FPS |
601-0415 | Camera, Gig-E, UV Sensitive, 1380 x 1040, 16FPS, Grayscale, 1/2" CCD |
601-0414 | Camera, Gig-E, Remote Head, 656 x 494, 120 FPS, Grayscale, 1/3" CCD |
601-0437 | Camera, Gig-E, IP67, 640x480, 124fps, Monochrome, 1/3" |
601-0438 | Camera, Gig-E, IP67, 640x480, 125fps, Monochrome, 1/2" |
601-0439 | Camera, Gig-E, IP67, 640x480, 150fps, Monochrome, 1/4" |
601-0440 | Camera, Gig-E, IP67, 780x580, 86fps, Monochrome, 1/2" |
601-0441 | Camera, Gig-E, IP67, 1024x768, 47fps, Monochrome, 1/3" |
601-0442 | Camera, Gig-E, IP67, 1280x960, 30fps, Monochrome, 1/3" |
601-0443 | Camera, Gig-E, IP67, 1360x1024, 25fps, Monochrome, 1/2" |
601-0444 | Camera, Gig-E, IP67, 1360x1024, 34fps, Monochrome, 2/3" |
601-0445 | Camera, Gig-E, IP67, 1600x1200, 26fps, Monochrome, 1/1.8" |
601-0446 | Camera, Gig-E, IP67, 2448x2050, 10fps, Monochrome, 2/3" |
601-0458 | Camera, Gig-E, IP67, 640x480, 124fps, Color, 1/3" |
601-0459 | Camera, Gig-E, IP67, 640x480, 125fps, Color, 1/2" |
601-0460 | Camera, Gig-E, IP67, 640x480, 150fps, Color, 1/4" |
601-0461 | Camera, Gig-E, IP67, 780x580, 86fps, Color, 1/2" |
601-0462 | Camera, Gig-E, IP67, 1024x768, 47fps, Color, 1/3" |
601-0463 | Camera, Gig-E, IP67, 1280x960, 30fps, Color, 1/3" |
601-0464 | Camera, Gig-E, IP67, 1360x1024, 25fps, Color, 1/2" |
601-0465 | Camera, Gig-E, IP67, 1360x1024, 34fps, Color, 2/3" |
601-0466 | Camera, Gig-E, IP67, 1600x1200, 26fps, Color, 1/1.8" |
601-0467 | Camera, Gig-E, IP67, 2448x2050, 10fps, Color, 2/3" |
959982002 | Camera, GigE, Linescan, 1K, 36 KHz, M42x1, C, F, Greyscale, 14 um pixel |
959982003 | Camera, GigE, Linescan, 1K, 68 KHz, M42x1, C, F, Greyscale, 14 um pixel |
959982004 | Camera, GigE, Linescan, 2K, 18 KHz, M42x1, C, F, Greyscale, 14 um pixel |
959982005 | Camera, GigE, Linescan, 2K, 36 KHz, M42x1, C, F, Greyscale, 14 um pixel |
959982001 | Camera, GigE, Linescan, 4K, 18 KHz, M58x0.75, F, Greyscale, 10 um pixel |
以下附件可用于簡化安裝和優化產品性能：
產品訂貨號 | 產品描述 |
661-0400 | I/O Board, M2XX, M3XX, & Aviator Camera, w / isolation |
606-0673-02 | Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 2 Meter, Camera to Terminal Block |
606-0673-03 | Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 3 Meter, Camera to Terminal Block |
606-0673-05 | Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 5 Meter, Camera to Terminal Block |
606-0673-10 | Cable, Camera Power and I/O, M2xx and M3xx, 12 pin, 10 Meter, Camera to Terminal Block |
661-0402 | I/O Board, JAI Camera, w / isolation |
601-0447 | SVS-TUBE-IP67-47-50-AR : Anti-Reflective coated optical glass window |
95A906123 | SVS-TUBE-IP67-47-50-IRCUT : IR-Cut filter window |
95A906124 | SVS-TUBE-IP67-47-50-POLY : AR-coated Polycarbonate window |
606-0685-0.5 | Cable, Power and I/O for SVS Visteks Camera, .5 Meter |
606-0685-01 | Cable, Power and I/O for SVS Visteks Camera, 1 Meter |
606-0685-1.5 | Cable, Power and I/O for SVS Visteks Camera, 1.5 Meter |
606-0685-03 | Cable, Power and I/O for SVS Visteks Camera, 3 Meter |
606-0685-05 | Cable, Power and I/O for SVS Visteks Camera, 5 Meter |
606-0686-02 | Cable, Ethernet, SVS Vistek Camera, 2 meter |
606-0686-05 | Cable, Ethernet, SVS Vistek Camera, 5 meter |
606-0686-10 | Cable, Ethernet, SVS Vistek Camera, 10 meter |
606-0686-15 | Cable, Ethernet, SVS Vistek Camera, 15 meter |
95A906062 | M58 to F-Mount Adapter (4K) |
95A906063 | M42 to F-Mount Adapter (1 & 2K) |
95A906064 | M42 to C-Mount Adapter (1 & 2K) |
606-0569-xx | Cable, |
