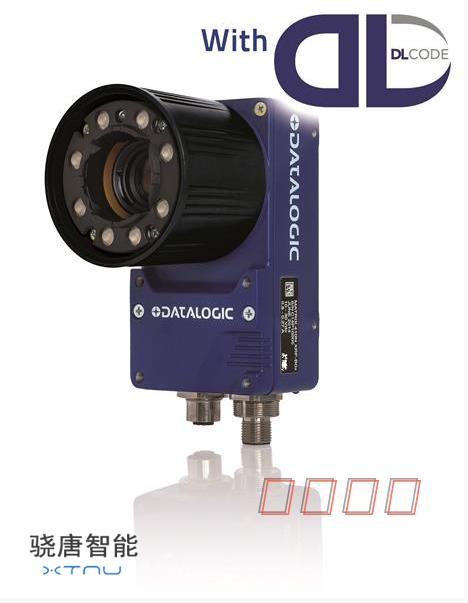

Datalogic得利捷 Matrix 410N固定式工業條碼閱讀器 固定式讀碼器
添加時間：2019-01-05 11:14:15
來源：
Matrix 410?是一款模塊化的靈活通用的緊湊型二維讀取器，集成有130萬或200萬像素傳感器。Matrix 410?具有如下優勢：卓越的讀碼和條碼質量鑒定性能；設置簡單；采用X-PRESS?用戶界面和專利的藍寶石?閱讀范圍、焦距指示系統；使用簡單；極具靈活性和通用性，IP等級高。
特點/優勢
模塊化設計
1.3 Mpx (1280 x 1024) @ 27 FPS CMOS傳感器
2Mpx (1600 x 1200) @ 15 FPS CCD傳感器
C-Mount鏡頭
紅色和白色LED光源
X-PRESS?用戶界面
瞄準系統與成功閱讀綠點指示
一位與二維條碼閱讀
條碼質量鑒定
DPM閱讀
應用
該系列產品目前可以滿足以下應用需求:
DPM閱讀與質量鑒定
輪胎分揀
印刷電路板PCB的裝配
電子產品跟蹤
醫療設備的追溯
食品和飲料
產品序列提供以下型號：
產品訂貨號 | 產品描述 |
| Matrix 410NTM Reader Body | |
| 937401082 | MATRIX 410N 500-010 1.3MP-60FPS-ETH |
| 937401083 | MATRIX 410N 700-010 2.0MP-45FPS-ETH |
以下附件可用于簡化安裝和優化產品性能
產品訂貨號 | 產品描述 |
| Focusing Lenses | |
| 93ACC1793 | LNS-1006 6MM C-MOUNT LENS |
| 93ACC1794 | LNS-1109 9MM C-MOUNT LENS |
| 93ACC1795 | LNS-1112 12,5MM C-MOUNT LENS |
| 93ACC1796 | LNS-1116 16MM C-MOUNT LENS |
| 93ACC1797 | LNS-1125 25MM C-MOUNT LENS |
| 93ACC1798 | LNS-1135 35MM C-MOUNT LENS |
| 93ACC1799 | LNS-1150 50MM C-MOUNT LENS |
| Internal Lighting modules | |
| 93A401019 | LT-001 INTERNAL LT RED NARROW ANGLE |
| 93A401020 | LT-002 INTERNAL LT RED WIDE ANGLE |
| 93A401021 | LT-003 INTERNAL LT WHITE NARROW ANGLE |
| 93A401023 | LT-005 INTERNAL LT BLUE FOR DPM |
| 93A401022 | LT-004 INTERNAL LT WHITE WIDE ANGLE |
| 93A401024 | LT-006 INTERNAL LT RED SUPERNARROW ANGLE |
| 93A401030 | LT-007 INTERNL LT RED SUPERNAR+LASER P |
| 93A401026 | LT-010 HI POWER LT BLUE SUPERNARROW |
| 93A400031 | LT-011 HI POWER LT RED SUPERNARROW |
| Main cables | |
| 93A051346 | CAB-ETH-M01 M12-IP67 ETHERNET CABLE (1M) |
| 93A051347 | CAB-ETH-M03 M12-IP67 ETHERNET CABLE (3M) |
| 93A051348 | CAB-ETH-M05 M12-IP67 ETHERNET CABLE (5M) |
| 93A050058 | CAB-DS01-S M12-IP67 TO CBX 1M |
| 93A050059 | CAB-DS03-S M12-IP67 TO CBX 3M |
| 93A050060 | CAB-DS05-S M12-IP67 TO CBX 5M |
| 93A050084 | CAB-MLP-05 MULTI LIGHTING POWER 5M |
| CBX Connection Boxes and related accessories | |
| 93A301067 | CBX100 CONNECTION BOX COMPACT |
| 93A301068 | CBX500 CONNECTION BOX MODULAR |
| 93A301069 | CBX100LT CONN. BOX COMPACT LOW TEMP. |
| 93A301077 | CBX800 GATEWAY |
| 93A301076 | CBX100 All in One |
| 93A301070 | CBX500 Profibus All-in-one; BM100+BM300 |
| 93A301071 | CBX500 Ethernet All-in-one; BM100+BM520 |
| 93A301072 | CBX500 Devicenet All-in-one; BM100+BM400 |
| 93ACC1821 | BA100 DIN RAIL ADAPTERS |
| 93ACC1822 | BA200 BOSCH ADAPTERS |
| 93ACC1877 | BA300 M12 3P F. PANEL CONN. (SERVICE) |
| 93ACC1853 | BA400 M12 3P M. PANEL CONN. (EXT.POWER) |
| 93ACC1854 | BA500 M12 4P F. PANEL CONN. (TRIGGER) |
| 93ACC1855 | BA600 M12 5P F. PANEL CONN. (ID-NET OUT) |
| 93ACC1856 | BA700 M12 5P M. PANEL CONN. (ID-NET IN) |
| 93ACC1847 | BA900 TWO CABLE GLANDS PANEL |
| 93ACC1827 | ADP-FF1 GENDER CHANGER 25P F/F (5PCS) |
| 93ACC1828 | ADP-MM1 GENDER CHANGER 25P M/M (5PCS) |
| Optional Modules for CBX500 | |
| 93ACC1808 | BM100 BACKUP MODULE |
| 93ACC1809 | BM150 DISPLAY MODULE |
| 93ACC1851 | BM200 ETHERNET TCP/IP MODULE |
| 93ACC1852 | BM210 ETHERNET TCP/IP IP65 MODULE |
| 93ACC1810 | BM300 PROFIBUS MODULE |
| 93ACC1811 | BM310 PROFIBUS IP65 MODULE |
| 93ACC1814 | BM400 DEVICENET IP65 MODULE |
| 93ACC1812 | BM500 ETHERNET MODULE |
| 93ACC1813 | BM510 ETHERNET IP65 MODULE |
| 93ACC1840 | BM520 ETHERNET IP54 MODULE |
| 93ACC1815 | BM600 CAN OPEN MODULE |
| 93ACC1816 | BM700 PROFINET MODULE |
| 93ACC1845 | BM1100 CC-LINK MODULE |
| 93ACC1848 | BM1200 MODBUS TCP MODULE |
| 93ACC1849 | BM1210 MODBUS TCP IP65 MODULE |
| 93ACC0113 | BM1300 ETHERCAT MODULE |
| Quick Link Connection Modules | |
| 93ACC1860 | QL100 ID-NET T-CONNECTION |
| 93ACC1868 | QL150 ID-NET + SERVICE T-CONNECTION |
| 93ACC1861 | QL200 ID-NET + POWER T-CONNECTION |
| 93ACC1862 | QL300 STANDARD CONNECTION MODULE |
| 93ACC1864 | QL500 CONNECTION MODULE + ETHERNET |
| 93ACC0033 | QLM600 PROFIBUS IP65 CONN. MODULE |
| 93ACC0037 | QLM500 ETHERNET/IP IP65 CONN. MODULE |
| 93ACC0038 | QLM700 PROFINET IP65 CONN. MODULE |
| Clustering cables | |
| 93A051385 | CAB-AUX03 M12 3P TO DB9 SERIAL CABLE 3M |
| 93A051381 | CAB-PW-EXT M12 POWER EXTENSION CABLE |
| 93ACC1883 | FMC300 M12 3P M. CONN. SERVICE |
| 93ACC1884 | FMC400 M12 3P F. CONN. POWER |
| 93A051386 | CAB-AUX04 15P DSUB TO DB9 SERIAL CABLE |
| 93ACC0040 | FMC600 M12 8P M. A-Code QLM-I/O |
| 93A050048 | CBL-1480-0.3 M12/5P MALE/FEM. 0.3M IDNET |
| 93A050049 | CBL-1480-01 M12/5P MALE/FEMALE 1M IDNET |
| 93A050050 | CBL-1480-02 M12/5P MALE/FEMALE 2M IDNET |
| 93A050051 | CBL-1480-05 M12/5P MALE/FEMALE 5M IDNET |
| 93A050045 | CBL-1487 CONNECTOR M12/5P/FEMALE IDNET |
| 93A050046 | CBL-1490 TERM. RESIST. M12/5P/MALE IDNET |
| 93A050052 | CBL-1494-02 M12/5P/FEMALE-LEADS 2M IDNET |
| 93A050053 | CBL-1494-05 M12/5P/FEMALE-LEADS 5M IDNET |
| 93A050047 | CBL-1496 TERM. RESIST. M12/5P/FEM. IDNET |
| 93A050056 | CBL-1498-02 M12/5P/MALE-LEADS 2M IDNET |
| Power Supplies | |
| 93ACC0046 | PG-120-K01 PWR SUPPLY KIT FOR M450 (EU) |
| 93ACC0047 | PG-120-K02 PWR SUPPLY KIT FOR M450 (UK) |
| 93ACC0048 | PG-120-K03 PWR SUPPLY KIT FOR M450 (US) |
| 93A050043 | CAB-PG-0105 VDC PWR PG120-M450 5M |
| 93ACC1870 | CAB-PG-0002 VDC PWR PG120-IDNET 2M |
| Specialized Optical/Lighting accessories | |
| 93ACC1800 | FLT-111 IR CUT FILTER (D 27MM) |
| 93ACC1801 | FLT-112 IR CUT FILTER (D 25.5MM) |
| 93ACC1802 | FLT-121 LINEAR POLARIZER (D 27MM) |
| 93ACC1803 | FLT-122 LINEAR POLARIZER (D 25.5MM) |
| 93ACC1858 | ESD SAFE LENS COVER MATRIX 400 |
| 93ACC1859 | PLASTIC WINDOW LENS COVER MATRIX 400 |
| 93ACC1729 | USX-60 ADJUSTABLE BRACKET |
| 93A401028 | LT-700 SINGLE BAR LT – DPM |
| 93ACC0052 | BK-21-000 FIX. BRACKET M210 LT-70X |
| 93A401016 | LT-510 MINI-DOME LIGHTING SY |
| 93A401017 | LT-511 DOME LIGHTING SYSTEM |
| 93A401018 | LT-630 FOUR BAR LIGHTING SY |
| 93ACC1790 | LTC-630 FOUR BAR LIGHT.SYST |
| 93ACC1789 | BK-630 FOUR BAR LIGHT. SYST |
| 93ACC1804 | BK-4410 COAXIAL LT BRACKET MATRIX |
| 93ACC1805 | BK-4990 GENERIC LT BRACKET MATRIX |
| 93ACC1788 | BK-511 DOME/RING LIGHT. SYST |
| Documentation kit | |
| 93ACC0148 | SW-DOCS-TEST CHART FOR MATRIX DL.CODE |
