Datalogic得利捷Matrix210N固定式DPM工業條碼流水線固定式讀碼
添加時間：2019-01-05 23:13:15
來源：
· 集成了以太網、PROFINET、EtherNet/IP和接口
· 動態聚焦的液態鏡頭
· 優異的DPM碼讀取性能
· 板載圖像存儲
· 杰出的DPM碼、一維碼、二維碼解碼能力
· 用于智能安裝的直型和直角型閱讀窗
· ID-NET?閱讀器集群/網絡連接
· 超快圖像采集，滿足高速生產線的應用需求
· 工業保護等級：ESD-safe、YAG和IP65
電子
· PCB板跟蹤
· 電子產品跟蹤
醫藥化工
· 醫藥生產和包裝
· 供應鏈的可追溯性
OEM
· 化學與生物醫學分析機
· 門禁系統
自助服務系統 (AT M, Kiosks)
· 打印和應用系統
· 文件處理
產品序列提供以下型號:
| STRAIGHT OPTICS | |
產品訂貨號 | 產品描述 |

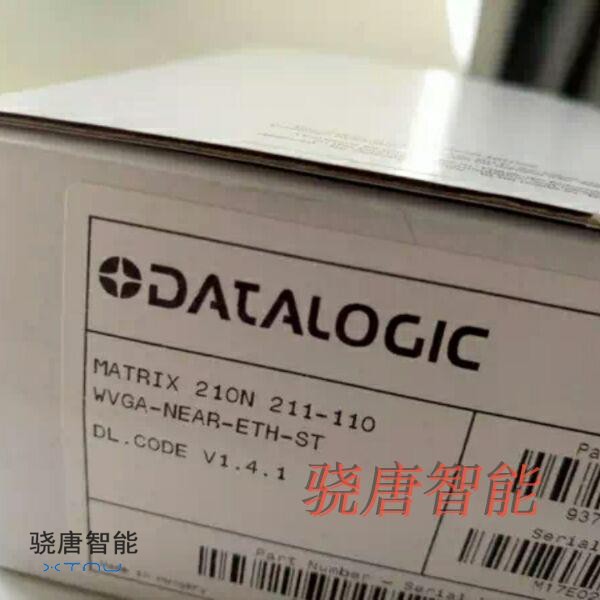

| 937501241 | MATRIX 210N 211-110 WVGA-NEAR-ETH-ST |
| 937501242 | MATRIX 210N 212-110 WVGA-MED-ETH-ST |
| 937501243 | MATRIX 210N 213-110 WVGA-FAR-ETH-ST |
| 937501259 | MATRIX 210N 211-111 WVGA-NEAR-ETH-ES |
| 937501260 | MATRIX 210N 212-111 WVGA-MED-ETH-ES |
| 937501261 | MATRIX 210N 213-111 WVGA-FAR-ETH-ES |
| 937501274 | MATRIX 210N 211-112 WVGA-NEAR-ETH-ESYF |
| 937501275 | MATRIX 210N 212-112 WVGA-MED-ETH-ESYF |
| 937501276 | MATRIX 210N 213-112 WVGA-FAR-ETH-ESYF |
| 937501282 | MATRIX 210N 235-110 WVGA-DPM-LL-ETH-STD |
| 937501283 | MATRIX 210N 235-111 WVGA-DPM-LL-ETH-ES |
| 937501284 | MATRIX 210N 235-112 WVGA-DPM-LL-ETH-ESYF |
| RIGHT ANGLE OPTICS | |
產品訂貨號 | 產品描述 |
| 937501250 | MATRIX 210N 211-010 WVGA-NEAR-90-ETH-ST |
| 937501251 | MATRIX 210N 212-010 WVGA-MED-90-ETH-ST |
| 937501252 | MATRIX 210N 213-010 WVGA-FAR-90-ETH-ST |
| 937501268 | MATRIX 210N 211-011 WVGA-NEAR-90-ETH-ES |
| 937501269 | MATRIX 210N 212-011 WVGA-MED-90-ETH-ES |
| 937501270 | MATRIX 210N 213-011 WVGA-FAR-90-ETH-ES |
| 937501277 | MATRIX 210N 211-012 WVGA-NEAR-90-ETH-ESY |
| 937501278 | MATRIX 210N 212-012 WVGA-MED-90-ETH-ESYF |
| 937501279 | MATRIX 210N 213-012 WVGA-FAR-90-ETH-ESYF |
以下附件可用于簡化安裝和優化產品性能：
產品訂貨號 | 產品描述 |
QUICK LINK | |
| 93ACC1860 | QL100 ID-NET T-CONNECTION |
| 93ACC1868 | QL150 ID-NET + SERVICE T-CONNECTION |
| 93ACC1861 | QL200 ID-NET + POWER T-CONNECTION |
| 93ACC1862 | QL300 STANDARD CONNECTION MODULE |
| 93ACC1864 | QL500 CONNECTION MODULE + ETHERNET |
SERVICE CABLES | |
| 93A051385 | CAB-AUX03 M12 3P TO DB9 SERIAL CABLE 3M |
| 93A051381 | CAB-PW-EXT M12 POWER EXTENSION CABLE |
| 93ACC1883 | FMC300 M12 3P M. CONN. SERVICE |
| 93ACC1884 | FMC400 M12 3P F. CONN. POWER |
CABLES | |
| 970101021 | CBL-1480-01 THIN M12/5P MALE/FEMALE 1M |
| 970101022 | CBL-1480-02 THIN M12/5P MALE/FEMALE 2M |
| 970101069 | CBL-1490 TERM. RESIST. THIN M12/5P/MALE |
| 970101082 | CBL-1496 TERM. RESIST. THIN M12/5P/FEM. |
| 93A051346 | CAB-ETH-M01 M12-IP67 ETHERNET CAB. (1M) |
| 93A051347 | CAB-ETH-M03 M12-IP67 ETHERNET CAB. (3M) |
| 93A051348 | CAB-ETH-M05 M12-IP67 ETHERNET CAB. (5M) |
CONNECTION BOXES | |
| 93A301067 | CBX100 CONNECTION BOX COMPACT |
| 93A301068 | CBX500 CONNECTION BOX MODULAR |
| 93A301069 | CBX100LT CONN. BOX COMPACT LOW TEMP. |
| 93A301077 | CBX800 GATEWAY |
ALL IN ONE KIT | |
| 93A301076 | CBX100 All in One |
| 93A301070 | CBX500 Profibus All-in-one; BM100+BM300 |
| 93A301071 | CBX500 Ethernet All-in-one; BM100+BM520 |
| 93A301072 | CBX500 Devicenet All-in-one; BM100+BM400 |
PANNEL CONNECTOR FOR CBX SERIES | |
| 93ACC1821 | BA100 DIN RAIL ADAPTERS |
| 93ACC1822 | BA200 BOSCH ADAPTERS |
| 93ACC1877 | BA300 M12 3P F. PANEL CONN. (SERVICE) |
| 93ACC1853 | BA400 M12 3P M. PANEL CONN. (EXT.POWER) |
| 93ACC1854 | BA500 M12 4P F. PANEL CONN. (TRIGGER) |
| 93ACC1855 | BA600 M12 5P F. PANEL CONN. (ID-NET OUT) |
| 93ACC1856 | BA700 M12 5P M. PANEL CONN. (ID-NET IN) |
| 93ACC1847 | BA900 TWO CABLE GLANDS PANEL |
CBX SERIES ACCESSORIES AND FIELDBUS | |
| 93ACC1808 | BM100 BACKUP MODULE |
| 93ACC1809 | BM150 DISPLAY MODULE |
| 93ACC1851 | BM200 ETHERNET TCP/IP MODULE |
| 93ACC1852 | BM210 ETHERNET TCP/IP IP65 MODULE |
| 93ACC1810 | BM300 PROFIBUS MODULE |
| 93ACC1811 | BM310 PROFIBUS IP65 MODULE |
| 93ACC1814 | BM400 DEVICENET IP65 MODULE |
| 93ACC1812 | BM500 ETHERNET MODULE |
| 93ACC1813 | BM510 ETHERNET IP65 MODULE |
| 93ACC1840 | BM520 ETHERNET IP54 MODULE |
| 93ACC1815 | BM600 CAN OPEN MODULE |
| 93ACC1816 | BM700 PROFINET MODULE |
| 93ACC1845 | BM1100 CC-LINK MODULE |
| 93ACC1848 | BM1200 MODBUS TCP MODULE |
| 93ACC1849 | BM1210 MODBUS TCP IP65 MODULE |
POWER SUPPLIES | |
| 93ACC1718 | PG6002 AC/DC Power Supply Unit (US) |
| 93ACC1719 | PG6001 AC/DC Power Supply Unit (UK) |
| 93ACC1720 | PG6000 AC/DC Power Supply Unit (EU) |
