信息 Matrix 300?是一款超緊湊的圖像式條形碼閱讀器，專為高速和直接零件標識（DPM）而設計。 Matrix 300?結合了具有超快圖像采集功能的高分辨率傳感器，像素高達1.3兆，幀率為60幀/秒。光學系統采用了液體透鏡模塊，實現了對焦的電子控制，可在不移動部件的情況下自動調節聚焦。 特點/優勢 ?集成超緊湊型閱讀器 ?具有高性能DPM讀取功能 ?采用液體鏡頭模塊，實現了電子對焦控制 ?集成了雙照明燈：暗場/亮場 ?配備快速、高分辨率的圖像傳感器：像素高達130萬、幀率高達60幀/秒 ?提供以太網電源選項 ?防護等級高達IP67，工作溫度為0至50°C ?配備精密的雙激光瞄準系統 應用 該系列產品目前可以滿足以下應用需求： 制造業、電子及汽車行業 ?對標記后的DPM條形碼進行驗證 ?用于控制在制品 ?對零部件進行追蹤 食品飲料行業 ?用于跟蹤在制品 文件處理應用 ? 實現高速過程控制 ***行業 ?用于跟蹤***器械 臨床實驗室自動化應用 ?用于生物醫學分析儀 ?用于標本采集機 產品序列提供以下型號：
"High Power Lighting" "DPM Lighting" ESD "YAG LASER PROTECTION" "Power over Ethernet" 937600010 MATRIX 300 412-010 LQL-9 RED WIDE STD x 937600011 MATRIX 300 452-010 LQL-9 WHT WIDE STD x 937600012 MATRIX 300 472-010 LQL-9 LT-DPM STD x 937600013 MATRIX 300 482-010 LQL-9 MLT-DPM STD x 937600014 MATRIX 300 412-011 LQL-9 RED WIDE ESD x x 937600015 MATRIX 300 452-011 LQL-9 WHT WIDE ESD x x 937600016 MATRIX 300 472-011 LQL-9 LT-DPM ESD x x 937600017 MATRIX 300 482-011 LQL-9 MLT-DPM ESD x x 937600018 MATRIX 300 412-012 LQL-9 RED WIDE ESYF x x x 937600019 MATRIX 300 452-012 LQL-9 WHT WIDE ESYF x x x 937600020 MATRIX 300 472-012 LQL-9 LT-DPM ESYF x x x 937600021 MATRIX 300 482-012 LQL-9 MLT-DPM ESYF x x x 937600022 MATRIX 300 412-040 LQL-9 RED WIDE POE x x 937600023 MATRIX 300 452-040 LQL-9 WHT WIDE POE x x 937600024 MATRIX 300 472-040 LQL-9 LT-DPM POE x x 937600025 MATRIX 300 482-040 LQL-9 MLT-DPM POE x x 937600026 MATRIX 300 472-041 LQL-9 LT-DPM POE ESD x x x 937600027 MATRIX 300 482-041 LQL-9 MLT-DPM POE ESD x x x 937600028 MATRIX 300 472-042 LQL-9 LT-DPM POE ESYF x x x x 937600029 MATRIX 300 482-042 LQL-9 MLT-DPM POE ESYF x x x x
Matrix 210? is the new Datalogic 2D reader offering extreme reading performance and integrated Ethernet in a ultra-compact housing.
Thanks to the WVGA image sensor, capturing up to 60 frames per second and to the powerful internal illuminator, Matrix 210?offer extreme dynamic reading capability.
MATRIX 210 211-100 MATRIX 210 212-100 MATRIX 210 213-100 MATRIX 210 214-100 MATRIX 210 211-110 MATRIX 210 212-110 MATRIX 210 213-110 MATRIX 210 214-110 MATRIX 210 211-120 MATRIX 210 212-120 MATRIX 210 213-120 MATRIX 210 214-120 MATRIX 210 211-000 MATRIX 210 212-000 MATRIX 210 213-000 MATRIX 210 214-000 MATRIX 210 211-010 MATRIX 210 212-010 MATRIX 210 213-010 MATRIX 210 214-010 MATRIX 210 211-020 MATRIX 210 212-020 MATRIX 210 213-020 MATRIX 210 214-020 MATRIX 210 211-101 MATRIX 210 212-101 MATRIX 210 213-101 MATRIX 210 214-101 MATRIX 210 211-111 MATRIX 210 212-111 MATRIX 210 213-111 MATRIX 210 214-111 MATRIX 210 211-121 MATRIX 210 212-121 MATRIX 210 213-121 MATRIX 210 214-121 MATRIX 210 211-001 MATRIX 210 212-001 MATRIX 210 213-001 MATRIX 210 214-001 MATRIX 210 211-011 MATRIX 210 212-011 MATRIX 210 213-011 MATRIX 210 214-011 MATRIX 210 211-021 MATRIX 210 212-021 MATRIX 210 213-021 MATRIX 210 214-021 MATRIX 210 211-112 MATRIX 210 212-112 MATRIX 210 213-112 MATRIX 210 214-112 MATRIX 210 211-012 MATRIX 210 212-012 MATRIX 210 213-012 MATRIX 210 214-012
937600010 MATRIX 300 412-010 LQL-9 RED WIDE STD x
937600011 MATRIX 300 452-010 LQL-9 WHT WIDE STD x
937600012 MATRIX 300 472-010 LQL-9 LT-DPM STD
x
937600013 MATRIX 300 482-010 LQL-9 MLT-DPM STD
x
937600014 MATRIX 300 412-011 LQL-9 RED WIDE ESD x
x
937600015 MATRIX 300 452-011 LQL-9 WHT WIDE ESD x
x
937600016 MATRIX 300 472-011 LQL-9 LT-DPM ESD
x x
937600017 MATRIX 300 482-011 LQL-9 MLT-DPM ESD
x x
937600018 MATRIX 300 412-012 LQL-9 RED WIDE ESYF x
x x
937600019 MATRIX 300 452-012 LQL-9 WHT WIDE ESYF x
x x
937600020 MATRIX 300 472-012 LQL-9 LT-DPM ESYF
x x x
937600021 MATRIX 300 482-012 LQL-9 MLT-DPM ESYF
x x x
937600022 MATRIX 300 412-040 LQL-9 RED WIDE POE x
x
937600023 MATRIX 300 452-040 LQL-9 WHT WIDE POE x
x
937600024 MATRIX 300 472-040 LQL-9 LT-DPM POE
x
x
937600025 MATRIX 300 482-040 LQL-9 MLT-DPM POE
x
x
937600026 MATRIX 300 472-041 LQL-9 LT-DPM POE ESD
x x
x
937600027 MATRIX 300 482-041 LQL-9 MLT-DPM POE ESD
x x
x
937600028 MATRIX 300 472-042 LQL-9 LT-DPM POE ESYF
x x x x
937600029 MATRIX 300 482-042 LQL-9 MLT-DPM POE ESYF
x x x x
配件
以下附件可用于簡化安裝和優化產品性能：
產品訂貨號 產品描述
MAIN CABLE TO CBX CONNECTION BOXES
93A050058 CAB-DS01-S M12-IP67 TO CBX 1M
93A050059 CAB-DS03-S M12-IP67 TO CBX 3M
93A050060 CAB-DS05-S M12-IP67 TO CBX 5M
ETHERNET CABLES
93A051346 CAB-ETH-M01 M12-IP67 ETHERNET CABLE (1M)
93A051347 CAB-ETH-M03 M12-IP67 ETHERNET CABLE (3M)
93A051348 CAB-ETH-M05 M12-IP67 ETHERNET CABLE (5M)
CONNECTION BOXES
93A301067 CBX100 CONNECTION BOX COMPACT
93A301068 CBX500 CONNECTION BOX MODULAR
93A301069 CBX100LT CONN. BOX COMPACT LOW TEMP.
93A301077 CBX800 GATEWAY
CBX MOUNTING ADAPTERS
93ACC1821 BA100 DIN RAIL ADAPTERS
93ACC1822 BA200 BOSCH ADAPTERS
CBX PANEL CONNECTORS (M12)
93ACC1877 BA300 M12 3P F. PANEL CONN. (SERVICE)
93ACC1853 BA400 M12 3P M. PANEL CONN. (EXT.POWER)
93ACC1854 BA500 M12 4P F. PANEL CONN. (TRIGGER)
93ACC1855 BA600 M12 5P F. PANEL CONN. (ID-NET OUT)
93ACC1856 BA700 M12 5P M. PANEL CONN. (ID-NET IN)
93ACC1847 BA900 TWO CABLE GLANDS PANEL
CBX500 OPTIONAL MODULES (Fieldbus, Backup, Display)
93ACC1808 BM100 BACKUP MODULE
93ACC1809 BM150 DISPLAY MODULE
93ACC1851 BM200 ETHERNET TCP/IP MODULE
93ACC1852 BM210 ETHERNET TCP/IP IP65 MODULE
93ACC1810 BM300 PROFIBUS MODULE
93ACC1811 BM310 PROFIBUS IP65 MODULE
93ACC1814 BM400 DEVICENET IP65 MODULE
93ACC1812 BM500 ETHERNET MODULE
93ACC1813 BM510 ETHERNET IP65 MODULE
93ACC1840 BM520 ETHERNET IP54 MODULE
93ACC1815 BM600 CAN OPEN MODULE
93ACC1816 BM700 PROFINET MODULE
93ACC1845 BM1100 CC-LINK MODULE
93ACC1848 BM1200 MODBUS TCP MODULE
93ACC1849 BM1210 MODBUS TCP IP65 MODULE
QUICK LINK CONNECTION MODULES
93ACC1860 QL100 ID-NET T-CONNECTION
93ACC1868 QL150 ID-NET + SERVICE T-CONNECTION
93ACC1861 QL200 ID-NET + POWER T-CONNECTION
93ACC1862 QL300 STANDARD CONNECTION MODULE
93ACC1864 QL500 CONNECTION MODULE + ETHERNET
93ACC0033 QLM600 PROFIBUS IP65 CONN. MODULE
93ACC0037 QLM500 ETHERNET/IP IP65 CONN. MODULE
93ACC0038 QLM700 PROFINET IP65 CONN. MODULE
ID-NET READER NETWORKING CABLES
93A050048 CBL-1480-0.3 M12/5P MALE/FEM. 0.3M IDNET
93A050049 CBL-1480-01 M12/5P MALE/FEMALE 1M IDNET
93A050050 CBL-1480-02 M12/5P MALE/FEMALE 2M IDNET
93A050051 CBL-1480-05 M12/5P MALE/FEMALE 5M IDNET
93A050045 CBL-1487 CONNECTOR M12/5P/FEMALE IDNET
93A050046 CBL-1490 TERM. RESIST. M12/5P/MALE IDNET
93A050052 CBL-1494-02 M12/5P/FEMALE-LEADS 2M IDNET
93A050053 CBL-1494-05 M12/5P/FEMALE-LEADS 5M IDNET
93A050047 CBL-1496 TERM. RESIST. M12/5P/FEM. IDNET
93A050056 CBL-1498-02 M12/5P/MALE-LEADS 2M IDNET
Matrix 300?是一款超緊湊的圖像式條形碼閱讀器，專為高速和直接零件標識（DPM）而設計。
Matrix 300?結合了具有超快圖像采集功能的高分辨率傳感器，像素高達1.3兆，幀率為60幀/秒。光學系統采用了液體透鏡模塊，實現了對焦的電子控制，可在不移動部件的情況下自動調節聚焦。
特點/優勢
集成超緊湊型閱讀器
具有高性能DPM讀取功能
采用液體鏡頭模塊，實現了電子對焦控制

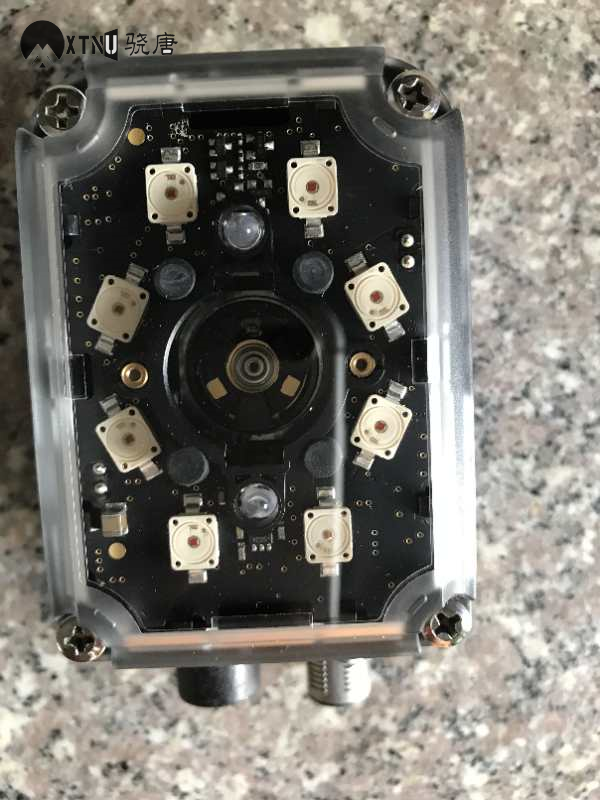

集成了雙照明燈：暗場/亮場
配備快速、高分辨率的圖像傳感器：像素高達130萬、幀率高達60幀/秒
提供以太網電源選項
防護等級高達IP67，工作溫度為0至50°C
配備精密的雙激光瞄準系統
應用
該系列產品目前可以滿足以下應用需求：
制造業、電子及汽車行業
對標記后的DPM條形碼進行驗證
用于控制在制品
對零部件進行追蹤
食品飲料行業
用于跟蹤在制品
文件處理應用
實現高速過程控制
醫療行業
用于跟蹤醫療器械
臨床實驗室自動化應用
用于生物醫學分析儀
用于標本采集機
模型
產品序列提供以下型號：
產品訂貨號 產品描述 "High Power Lighting" "DPM Lighting" ESD "YAG LASER PROTECTION" "Power over Ethernet"
937600010 MATRIX 300 412-010 LQL-9 RED WIDE STD x
937600011 MATRIX 300 452-010 LQL-9 WHT WIDE STD x
937600012 MATRIX 300 472-010 LQL-9 LT-DPM STD
x
937600013 MATRIX 300 482-010 LQL-9 MLT-DPM STD
x
937600014 MATRIX 300 412-011 LQL-9 RED WIDE ESD x
x
937600015 MATRIX 300 452-011 LQL-9 WHT WIDE ESD x
x
937600016 MATRIX 300 472-011 LQL-9 LT-DPM ESD
x x
937600017 MATRIX 300 482-011 LQL-9 MLT-DPM ESD
x x
937600018 MATRIX 300 412-012 LQL-9 RED WIDE ESYF x
x x
937600019 MATRIX 300 452-012 LQL-9 WHT WIDE ESYF x
x x
937600020 MATRIX 300 472-012 LQL-9 LT-DPM ESYF
x x x
937600021 MATRIX 300 482-012 LQL-9 MLT-DPM ESYF
x x x
937600022 MATRIX 300 412-040 LQL-9 RED WIDE POE x
x
937600023 MATRIX 300 452-040 LQL-9 WHT WIDE POE x
x
937600024 MATRIX 300 472-040 LQL-9 LT-DPM POE
x
x
937600025 MATRIX 300 482-040 LQL-9 MLT-DPM POE
x
x
937600026 MATRIX 300 472-041 LQL-9 LT-DPM POE ESD
x x
x
937600027 MATRIX 300 482-041 LQL-9 MLT-DPM POE ESD
x x
x
937600028 MATRIX 300 472-042 LQL-9 LT-DPM POE ESYF
x x x x
937600029 MATRIX 300 482-042 LQL-9 MLT-DPM POE ESYF
x x x x
配件
以下附件可用于簡化安裝和優化產品性能：
產品訂貨號 產品描述
MAIN CABLE TO CBX CONNECTION BOXES
93A050058 CAB-DS01-S M12-IP67 TO CBX 1M
93A050059 CAB-DS03-S M12-IP67 TO CBX 3M
93A050060 CAB-DS05-S M12-IP67 TO CBX 5M
ETHERNET CABLES
93A051346 CAB-ETH-M01 M12-IP67 ETHERNET CABLE (1M)
93A051347 CAB-ETH-M03 M12-IP67 ETHERNET CABLE (3M)
93A051348 CAB-ETH-M05 M12-IP67 ETHERNET CABLE (5M)
CONNECTION BOXES
93A301067 CBX100 CONNECTION BOX COMPACT
93A301068 CBX500 CONNECTION BOX MODULAR
93A301069 CBX100LT CONN. BOX COMPACT LOW TEMP.
93A301077 CBX800 GATEWAY
CBX MOUNTING ADAPTERS
93ACC1821 BA100 DIN RAIL ADAPTERS
93ACC1822 BA200 BOSCH ADAPTERS
CBX PANEL CONNECTORS (M12)
93ACC1877 BA300 M12 3P F. PANEL CONN. (SERVICE)
93ACC1853 BA400 M12 3P M. PANEL CONN. (EXT.POWER)
93ACC1854 BA500 M12 4P F. PANEL CONN. (TRIGGER)
93ACC1855 BA600 M12 5P F. PANEL CONN. (ID-NET OUT)
93ACC1856 BA700 M12 5P M. PANEL CONN. (ID-NET IN)
93ACC1847 BA900 TWO CABLE GLANDS PANEL
CBX500 OPTIONAL MODULES (Fieldbus, Backup, Display)
93ACC1808 BM100 BACKUP MODULE
93ACC1809 BM150 DISPLAY MODULE
93ACC1851 BM200 ETHERNET TCP/IP MODULE
93ACC1852 BM210 ETHERNET TCP/IP IP65 MODULE
93ACC1810 BM300 PROFIBUS MODULE
93ACC1811 BM310 PROFIBUS IP65 MODULE
93ACC1814 BM400 DEVICENET IP65 MODULE
93ACC1812 BM500 ETHERNET MODULE
93ACC1813 BM510 ETHERNET IP65 MODULE
93ACC1840 BM520 ETHERNET IP54 MODULE
93ACC1815 BM600 CAN OPEN MODULE
93ACC1816 BM700 PROFINET MODULE
93ACC1845 BM1100 CC-LINK MODULE
93ACC1848 BM1200 MODBUS TCP MODULE
93ACC1849 BM1210 MODBUS TCP IP65 MODULE
QUICK LINK CONNECTION MODULES
93ACC1860 QL100 ID-NET T-CONNECTION
93ACC1868 QL150 ID-NET + SERVICE T-CONNECTION
93ACC1861 QL200 ID-NET + POWER T-CONNECTION
93ACC1862 QL300 STANDARD CONNECTION MODULE
93ACC1864 QL500 CONNECTION MODULE + ETHERNET
93ACC0033 QLM600 PROFIBUS IP65 CONN. MODULE
93ACC0037 QLM500 ETHERNET/IP IP65 CONN. MODULE
93ACC0038 QLM700 PROFINET IP65 CONN. MODULE
ID-NET READER NETWORKING CABLES
93A050048 CBL-1480-0.3 M12/5P MALE/FEM. 0.3M IDNET
93A050049 CBL-1480-01 M12/5P MALE/FEMALE 1M IDNET
93A050050 CBL-1480-02 M12/5P MALE/FEMALE 2M IDNET
93A050051 CBL-1480-05 M12/5P MALE/FEMALE 5M IDNET
93A050045 CBL-1487 CONNECTOR M12/5P/FEMALE IDNET
93A050046 CBL-1490 TERM. RESIST. M12/5P/MALE IDNET
93A050052 CBL-1494-02 M12/5P/FEMALE-LEADS 2M IDNET
93A050053 CBL-1494-05 M12/5P/FEMALE-LEADS 5M IDNET
93A050047 CBL-1496 TERM. RESIST. M12/5P/FEM. IDNET
93A050056 CBL-1498-02 M12/5P/MALE-LEADS 2M IDNET
